api design

use pull-based model (client-initiated), and HTTP long polling with server-sent events (SSE) (server streams events on same connection, with header Accept: text/event-stream)
SSE works on traditional HTTP and supports chunking messages
disadvantages of SSE
- only support UTF-8 message transport, no support for binary data
- up to 6 concurrent connections (before http2)

data storage

relational DB is suboptimal solution for live comment service due to scalability limitations (internal data structures (delay) and complex operation to aggregation)
nosql DB can be used for live comment data storage due to
- use LSM storage for high performance for writes, but not optimized for reads
- schemaless data models reduce overhead of joining tables
- optimized for time-series data
redis can be used to store live comments, with deduplication logic to prevent repeated live comments, and keep chronological ordering of live comments

reads come to servers on local DC, while writes come to servers on global DC -> not use due to
- significant bandwidth usage on data replication
- not real-time due to asynchronous replication
- poor latency

writes come to servers on local DC, while reads come to servers on global DC (pull-based model)
timestamps can be used to check latest messages, and server in local DC will consolidate all published messages and return to client
bandwidth usage is low because data isnt replicated globally, but latency is degraded because server will query data from all DCs -> not use

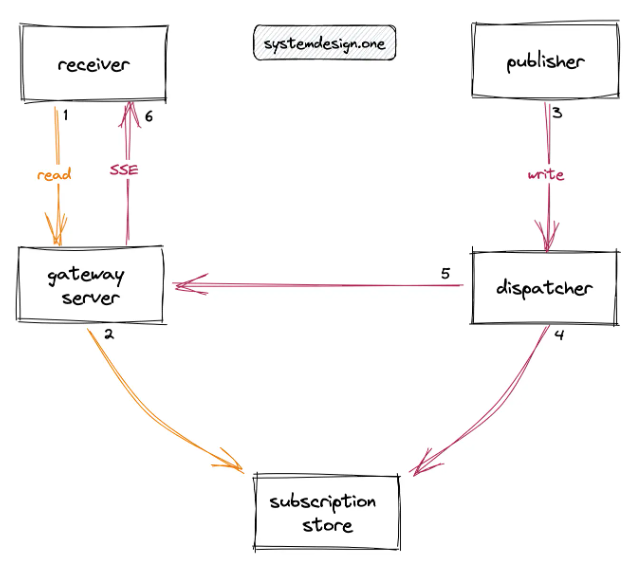

writes are broadcast/replicated to multiple DCs (push-based model) -> reduce usage of bandwidth and improve latency -> use this model

receiver can periodically request (polling) server to check new messages -> unnecessary bandwidth (empty response), overload servers -> push-based SSE is optimal for real-time delivery of live comments

publisher uses message bus to send messages to multiple consumers -> communicate instantly without having intervals for polling data

as pub/sub server to decouple producers/consumers (separation of concerns)
lower overheads, ordering guarantees, integrity guarantees and idempotency
limitations
- kafka consumers use pull-based model (consumer polls the broker to fetch messages from subscribed topics) -> degraded latency
- limit scalability because consumer has to subscribe all topics, and consumes all messages
- operational complexity is high

as pub/sub server to transmit messages between nodes
replicates every message to all nodes (don’t know about receivers) -> degraded performance
TCP connections are maintained between producer-redis, and redis-consumer for delivering messages
limitations
- no guarantee at least one-time message delivery
- reliability of message delivery depends on TCP connection?
- lack of message persistence

used as append-only log to improve the responsiveness of system (similar to kafka)
addresses above redis’ limitations (data can be lost because it is periodically written to disk)
redis sentinel/active-active leads to increased complexity of operations

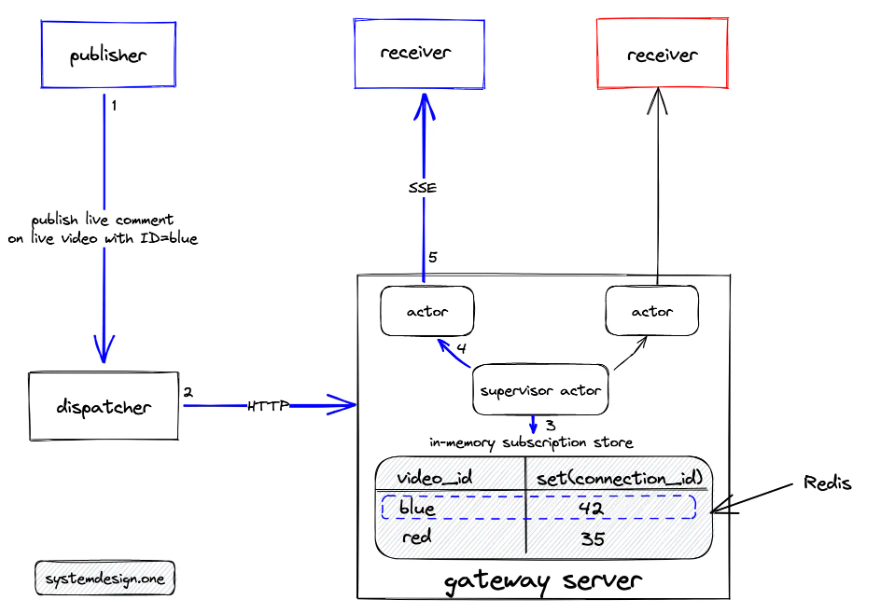

actors in gateway server keep SSE connection to client, and handle how message is sent to clients
actors use in-memory subscription store (redis) to broadcast message to child actors (connect to subscribed clients) when multiple clients subscribe different video on same gateway server

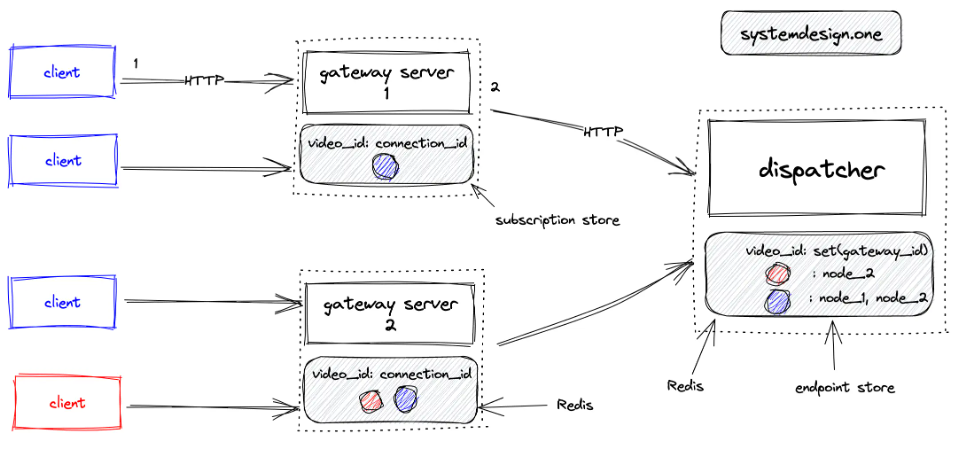

use dispatcher to broadcast message to partitioned gateway servers
gateway servers (clients) only subscribe a subset of live videos -> dispatcher broadcasts messages inefficiently to all gateway servers
dispatcher uses endpoint store to track which videos are requested by gateway servers for broadcasting

stateless dispatcher can be replicated for horizontal scaling -> move endpoint store to external store (out of )
