interview guidance

3 min read

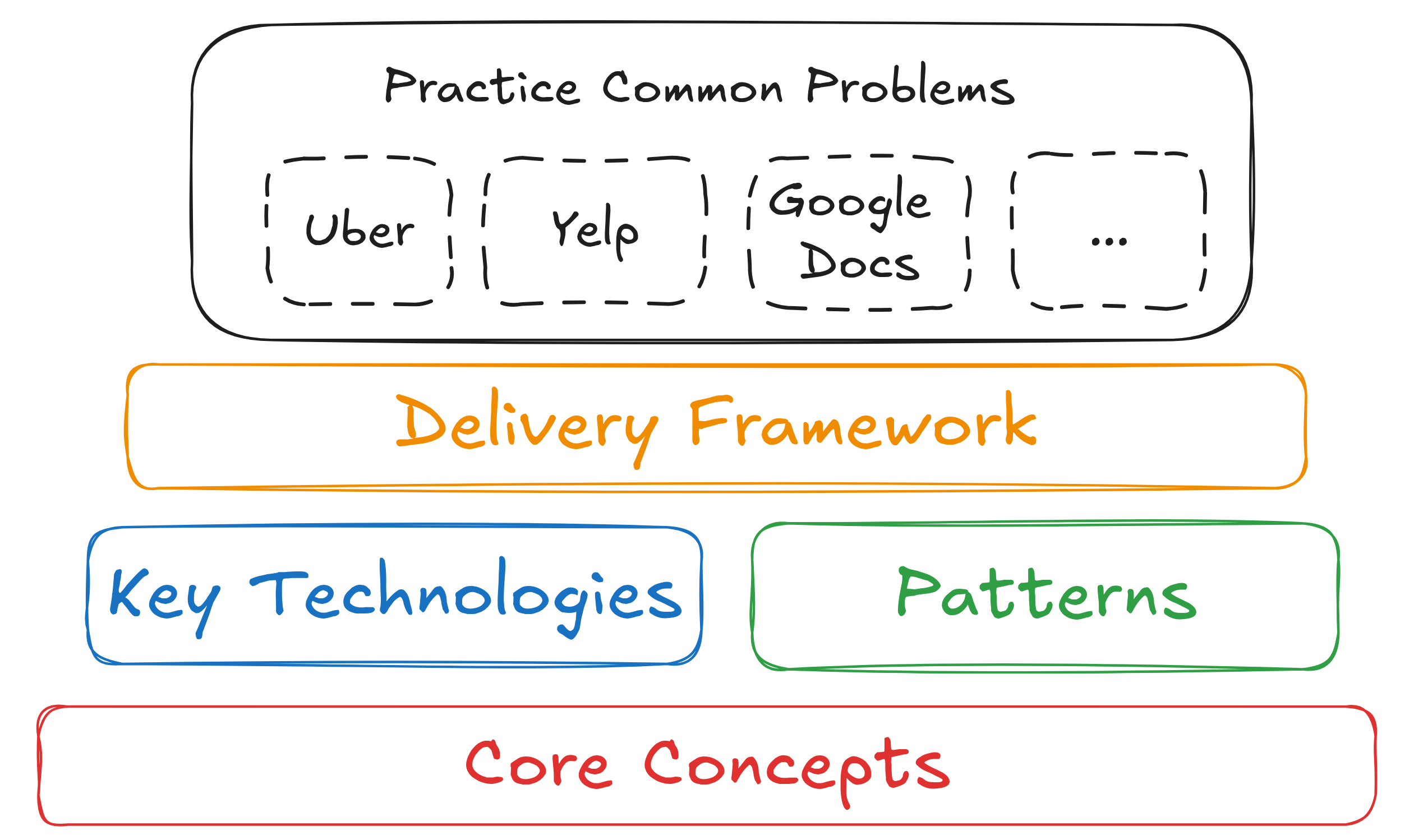

overall structure

types of SD

  • low-level design (OOP) -> real use cases
  • infrastructure design -> infrastructure use cases
    • rate limiter, message broker, key-value storage, …
  • product design

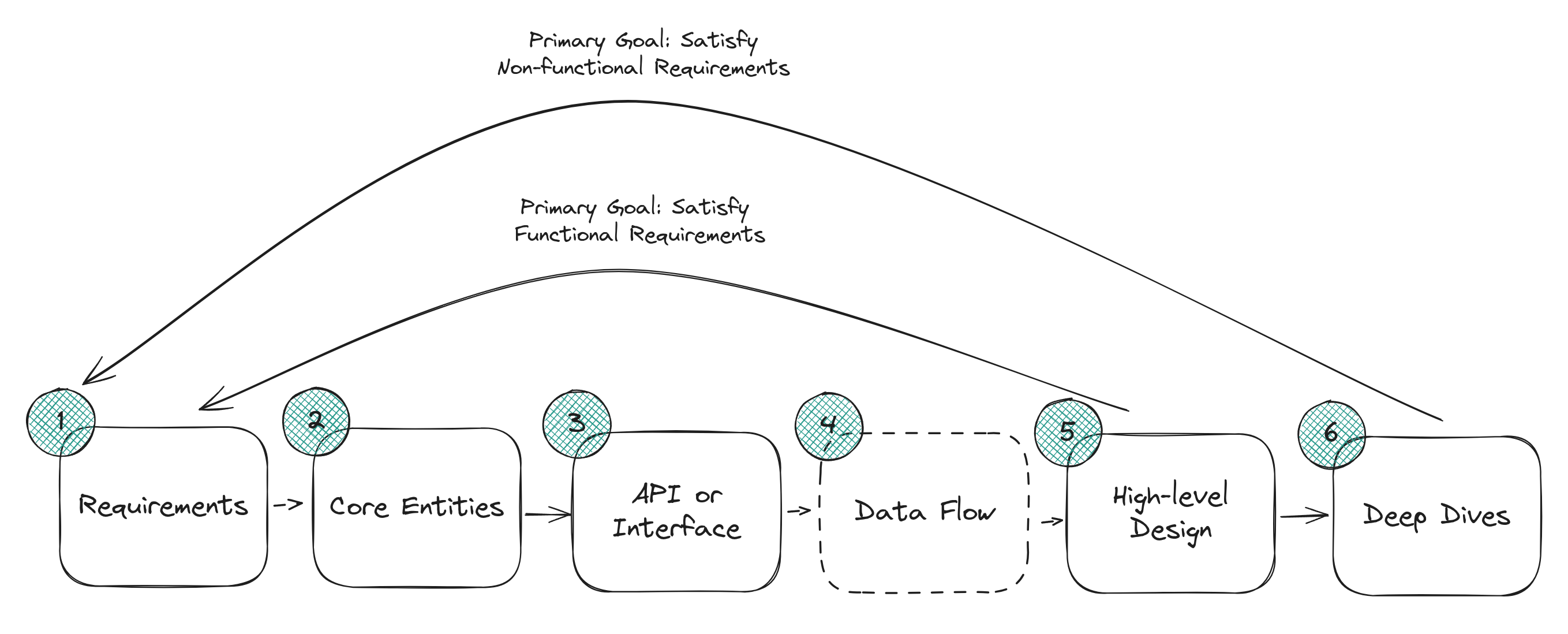

1. delivery framework (how to make a workable system - interview progress) => for 40m - 1h

-> structure thoughts and focus on most important aspects

  1. requirements (~ 5m)
    1. functional requirements = business requirements
      • are core functions of the system -> the first things to discuss with the interviewer
      • questions
        • users/clients should be able to …?
        • does the system need to do …?
        • what would happen if …?
    2. non-functional requirements = system requirements (system qualities)
      • questions
        • the system should be …?
        • the system should be able to …?
      • top requirements
        • CAP theorem = consistency or availability when network partition occurs (always happens in distributed system)
        • environment constraints = server or edge devices, network, …
        • scalability = how to solve bursty traffic / significant increase
        • latency
        • durability = tolerate some data loss (social network) or not (banking system)
        • security
        • fault tolerance = redundancy, failover, recovery mechanisms
  2. core entities (~ 5m)
    • are data entities/schemas
    • don’t define entire data models at this point -> quickly iterate and add to it later
  3. API / system interfaces (~ 1m)
    • REST (default) => not choose another type unless there are specific requirements
    • RPC for service-to-service
    • socket
    • graphQL
  4. data flow (~ 5m)
    • is data processing (optional)

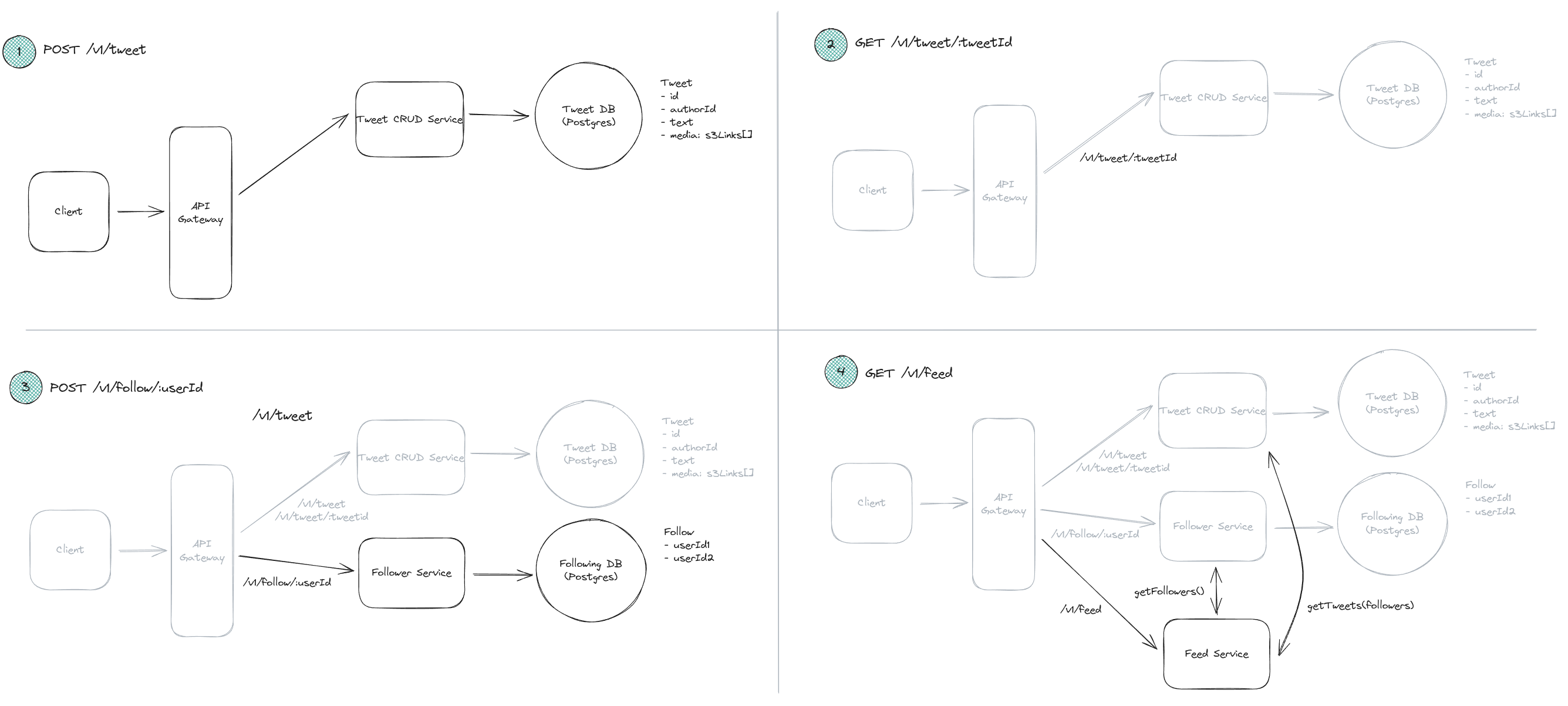

  5. high-level design = whiteboard design (~ 5-10m)
    • represents system components (eg. load balancer, servers, databases, caches, …) and demonstrates how they interact
    • don’t overthink -> make it simple and focus on functional requirements
    • be explicit about how data flows and changes in the system
  6. low-level design (deep dive) (~ 10-20m)
    • think about non-functional requirements -> improve existing system to solve each of interviewer’s requirements

2. core concepts

  • CAP theorem -> choose between consistency (C) or availability (A) when partition (P) happens
  • networking essentials
  • API design
  • locking
  • DB indexing
  • consistent hashing
  • scaling
  • security
  • monitoring

3. key technologies

  • API gateway
  • Redis
  • PostgreSQL
  • MongoDB
  • ElasticSearch
  • LSM/Cassandra
  • Kafka/Zookeeper
  • Spark/Flink

4. patterns

  • real-time updates
  • dealing with contention
  • multi-step processes
  • scaling reads
  • scaling writes
  • blob storage
  • long-running task

5. common problems

infrastructure designs

  • distributed cache
  • distributed queue
  • distributed lock
  • api rate limiter

product designs

  • distributed metrics/logs, aggregation and monitoring service
  • notification service
  • ticket booking system
  • distributed counter (eg. count facebook likes, …)
  • top-k elements (eg. shared articles, video ranking, …)
  • cloud storage (eg. dropbox, google drive, …)
  • payment system (eg. credit card, …)
  • on-call escalation system
  • live comments on facebook, youtube, …
  • url shortening
  • live feed on social network
  • ride sharing (eg. uber, lift, …)
  • live streaming
  • recommendation system (eg. spotify, …)
  • web crawler
  • chat application
