networking

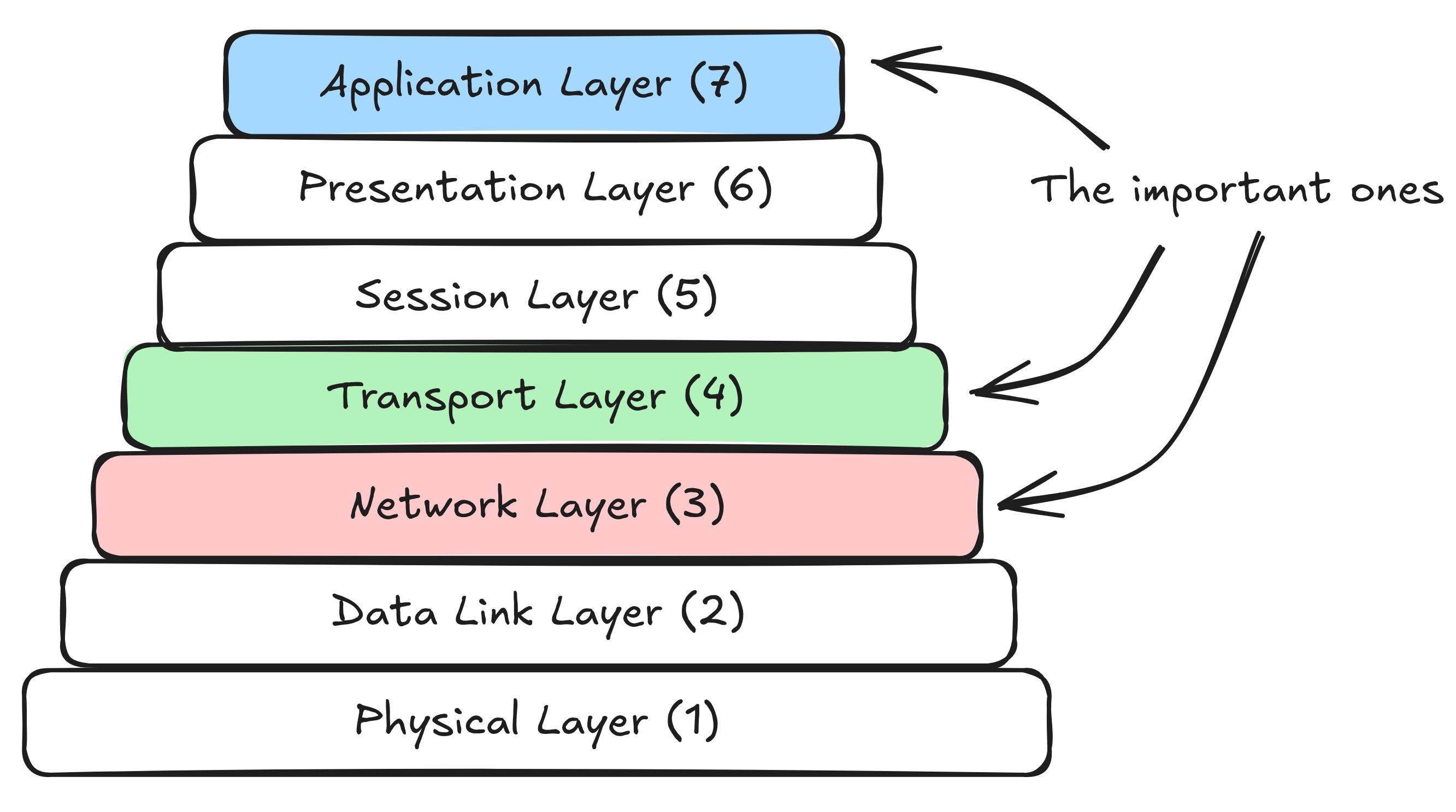

OSI model

• layered architecture
•

network layer (IP)

• handles routing and addressing
• breaks data into packets, forward them and providing best-effort delivery
• node’s ip addresses are assigned by DHCP

transport layer (TCP, UDP, QUIC)

• provides end-to-end communication services
• network load balancer (L4) works here

1. TCP (transmission control protocol)
   • is reliable but with overhead, requires handshake SYN+ACK
   • connection is stream and stateful connection between server and client
   • characteristics
     • connection-oriented (establishes connection before sending data)
     • guarantee of delivery (reliable) and ordering
     • flow + congestion control (prevent overwhelming + collapse) -> default connection protocol
2. UDP (user diagram protocol)
   • is very fast but not reliable
   • includes source IP, destination IP and binary blob of data
   • characteristics
     • low latency
     • connectionless (no handshake SYN+ACK)
     • no guarantee of delivery and ordering -> choose UDP if speed is more important than reliability (eg. streaming, DNS lookup, …)

application layer (HTTP, DNS, websocket)

• built on top of TCP or UDP

HTTP (hypertext transfer protocol)

• is stateless protocol (each request is independent and servers needn’t maintain previous requests)
• supports TLS for encryption
• most common status codes
  • 2xx (success)
  • 3xx (permanent/temporary redirection)
  • 4xx (client errors): bad request, authorization, too many requests, …
  • 5xx (server errors): internal errors, network (gateway) errors, …

rest

-> default option for interview

• most common API paradigm
• clients perform operations on their resources

graphql

-> for flexible data fetching (barely required by interviewer for specific platforms)

• under-fetching: need multiple requests and round trips, add overhead and latency for page loading
• over-fetching: api needs long time to load and returns too much data

rpc

-> for performant communication in microservices or service-to-service

• well-defined schema (using protobuf, thrift)

sse (server-send events)

-> realtime push notification relies on HTTP, but is expensive to maintain connection

• allow server to stream many messages over time in a single response

=> if microservices and performant API, then RPC, else REST

websocket - high frequency, persistent, real time bidirectional communication

• websockets provide a persistent, tcp-style connection between client and server -> real-time bidirectional communication
• server and client push data to each other without being prompted by a new request

comparison of polling, SSE and websocket

Feature	Polling (Short & Long)	Server-Sent Events (SSE)	WebSockets
Communication Direction	Unidirectional (Client pulls) Client requests; Server responds. - Short polling: The client periodically sends HTTP requests to the server (e.g., every few seconds) to check for updates. If no data is available, the server returns an empty response immediately - Long polling: The client sends a request, but the server holds the connection open and does not respond until data is available or a timeout occurs. Once the client receives a response, it immediately sends a new request to re-establish the wait	Unidirectional (Server pushes) Client requests once; Server streams chunks. The client opens a connection, and the server keeps it open to push text-based messages (events) whenever updates occur. It functions like a one-way radio broadcast	Bidirectional (Full-Duplex) Client and Server talk simultaneously.
Protocol & Handshake	Standard HTTP Uses standard GET requests. Long polling holds the request open until data is available.	HTTP Standard HTTP request where the server keeps the connection open and sends data as a stream of text.	TCP (via HTTP Upgrade) Starts as HTTP GET with Upgrade header, then switches to binary TCP stream.
Connection State	Stateless (mostly) Short polling creates a new connection per request. Long polling requires re-establishing connection after every message.	Long-lived (Persistent) Maintains a single open connection for the duration of the stream.	Stateful (Persistent) Both client and server must maintain connection state (open sockets).
Data Format	Flexible JSON, XML, Binary, etc.	Text Only UTF-8 text data only. Cannot handle binary natively.	Text & Binary Supports both strings and binary data frames.
Latency	High to Medium Short polling depends on interval. Long polling is better but requires a round-trip to re-connect after receiving data.	Low Server pushes data instantly. No need for client to request updates.	Lowest No header overhead per message. Data frames are lightweight.
Load Balancing (LB)	Layer 7 (L7) Friendly Works easily with standard HTTP load balancers. Long polling may require basic sticky sessions.	Layer 7 (L7) Friendly Works with standard HTTP LBs, though some proxies may buffer responses and delay delivery.	Layer 4 (L4) Preferred Often requires L4 LBs to maintain the persistent TCP connection. L7 is possible but complex.
Firewall & Proxy Tolerance	High Looks like standard HTTP traffic. Works almost everywhere.	Medium Some corporate firewalls/proxies drop connections that stay open too long without activity.	Low/Medium Requires Connection: Upgrade support. Aggressive firewalls may block non-standard traffic.
Resource Overhead	High Repeated HTTP headers sent with every request. Long polling consumes server threads while waiting.	Medium Single connection handshake, but keeps an open socket.	Low (Per Message) Initial handshake overhead, but subsequent messages have minimal framing overhead.
Reconnection Logic	Manual Client must handle interval logic and error retries.	Built-in EventSource API in browsers handles automatic reconnection and tracking last message ID.	Manual Client logic must detect disconnects and initiate a new handshake.
Ideal Use Case	Dashboards / Analytics Where real-time is not critical (e.g., CMS content updates, slow-moving metrics).	News Feeds / Notifications Stock tickers, sports scores, social media feeds where client doesn’t need to write back.	Chat / Gaming / Collab Multiplayer games, chat apps, Google Docs, where speed and bidirectional interaction are vital.

load balancing

client-side

• lets client choose which server to talk to (client sends request to service registry to get list of server and chooses one of them)
• use cases
  • small number of clients
  • server with slow updates (eg. DNS)
  • internal services

dedicated LB (server-side)

• client -> LB -> servers (LB chooses which server will process request from client)

• load balancing algorithms

  • round-robin
  • random
  • least connections
  • least response time
  • IP hash

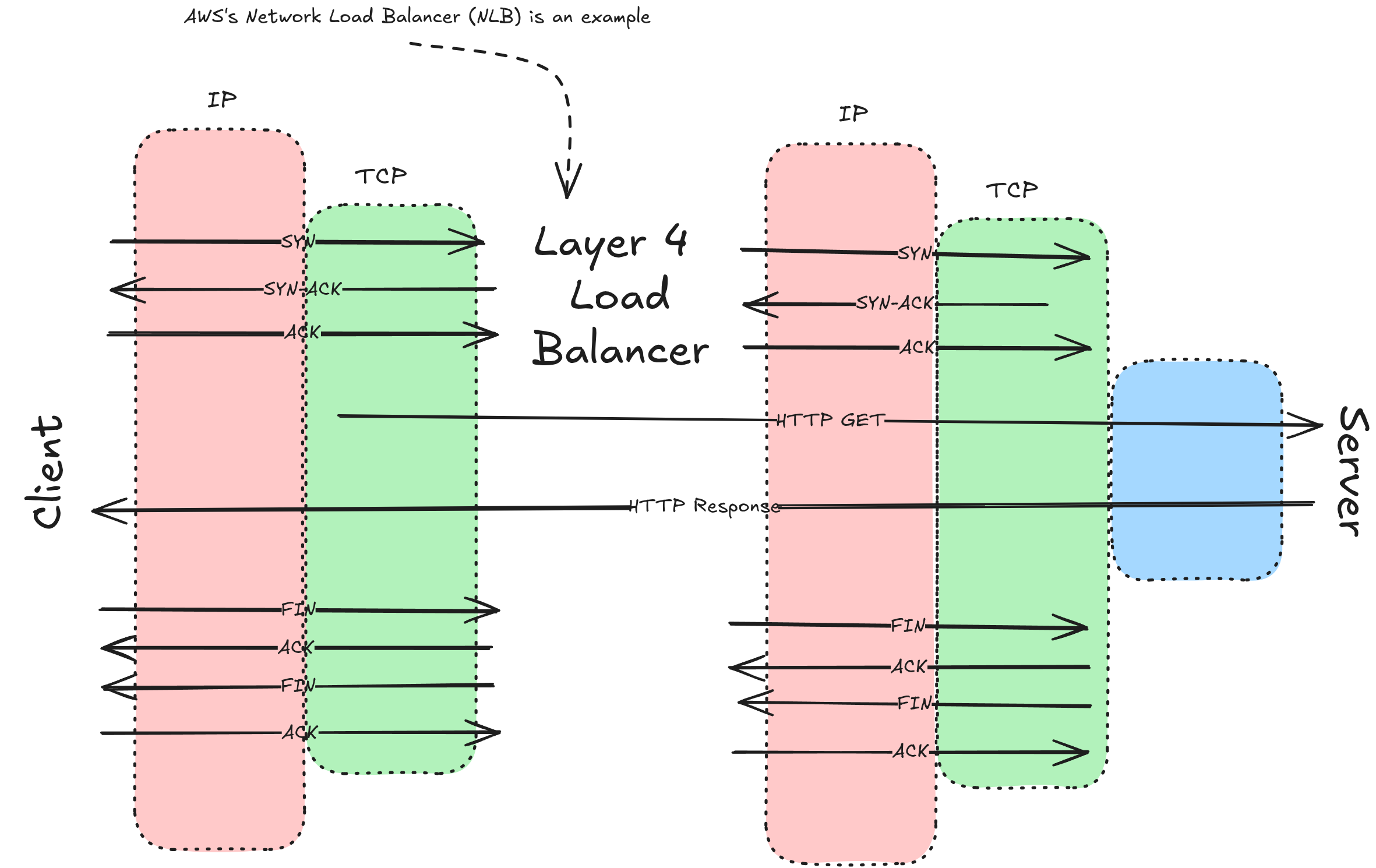

• network load balancer (transport layer TCP/UDP - L4)

  • make routing based on network information (ip address, port, …) instead of request content
  • maintain persistent connection between server and client (all subsequent requests within TCP session will be processed by one server?)
  •
  • where to use?
    • websockets (requires persistent TCP connection)
    • high performance application

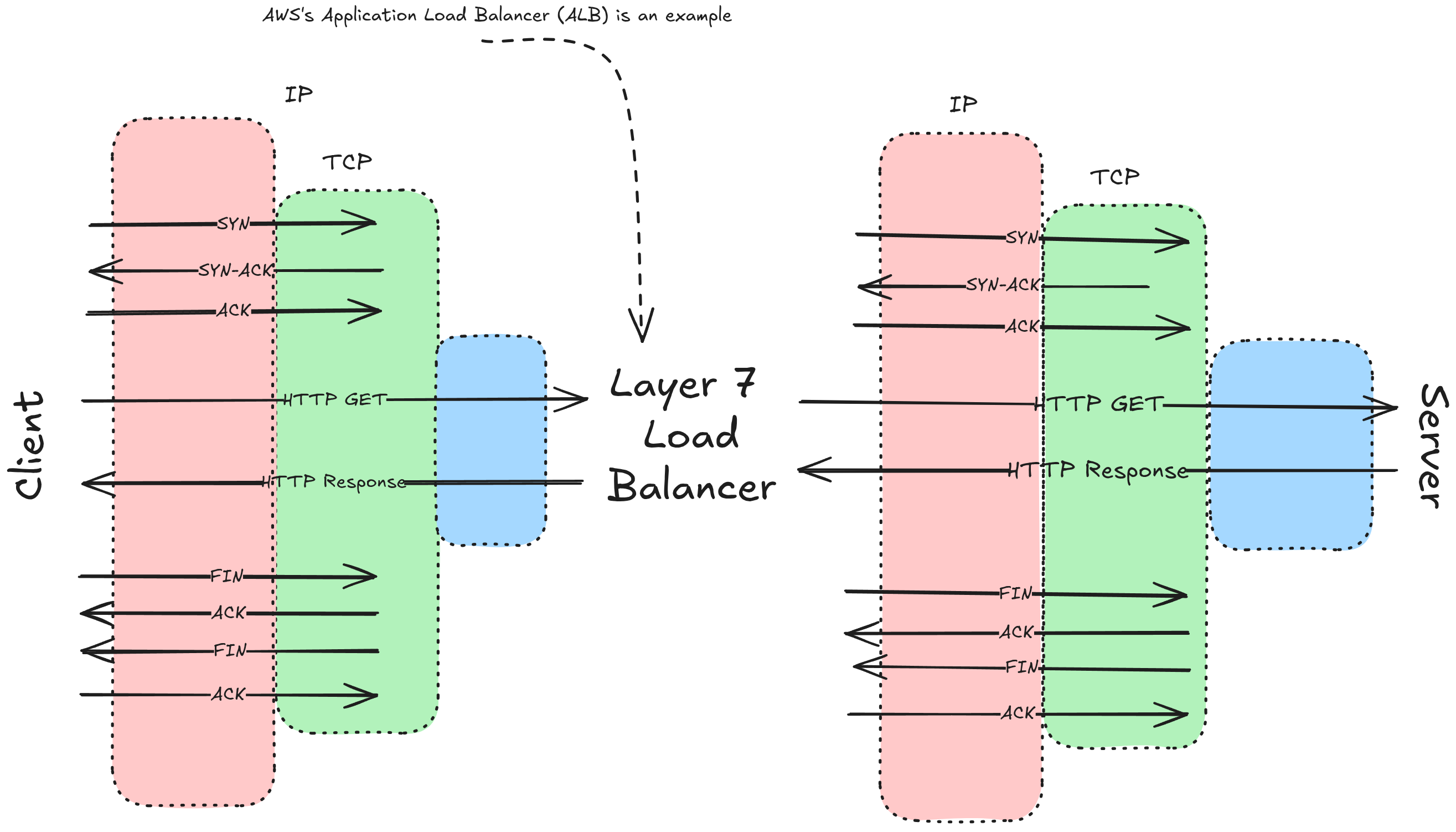

• application load balancer (L7)

  • make routing based on request content -> more intelligent routing decisions
  • receive application-level requests (HTTP) and forward them to appropriate servers
  • are suitable for HTTP-based traffic
  •
  • where to use?
    • all HTTP-based traffic (except websocket)

algorithms

round-robin

• LB keeps a list of servers, and sends requests in sequential order

least response time

• LB monitors the response time of servers, send requests to server with fastest response time
• if 2 servers have same response time, LB sends requests to server with fewer connections

weighted round-robin

• LB assigns weight to each server, and sends requests to server with higher weight (higher capacity) (round-robin extension)

adaptive

• LB keeps track of server’s metrics (like CPU, memory, etc…), and sends requests to server with lower load -> better fault tolerance, but it’s complex

least connections

• LB keeps track of servers with their connections, and send requests to server with fewer connections

ip hash

• LB uses hash function to convert user’s ip address to a number and sends requests to matched server -> sticky sessions from same user

regionalization, latency and data locality

content delivery network (CDN)

• most common strategy to reduce latency
• cache data at edge server (edge location) to reduce network time

regional partitioning

handling failures and fault modes

backoff

• instead of retrying immediately, wait a short amount of time before retrying
• aws timeouts, retries and backoffs

idempotency

• f(f(f(...f(x)...))) = f(x)
• setup idempotency key to API -> lock

circuit breaker

• protect the system when network calls to dependencies fail repeatedly
• advantages
  • fail fast: reject requests to failing services, instead of waiting timeouts
  • reduce load: prevent overwhelming services
  • self-healing
  • system stability
• where to use
  • (external) third party services
  • database connections and queries
  • service-to-service in microservices
  • resource intensive operations

questions?

1. how does TCP create, handle and close connection?
   • TCP opens a connection to determine when server is available, and the way to server before transfering data
   • use 3-step handshake
     • client send SYN (synchronization) with random sequence number A
     • server send SYN-ACK (acknowledgment) with random sequence number B and ACK number is A+1
     • client send ACK with ACK number is B+1
   • half-duplex and full-duplex connection
     • half-duplex supports either sending or receiving at a time
     • full-duplex supports both sending and receiving simultaneous -> need 3-step handshake for full-duplex connection
   • TCP close connection by sending FIN-ACK packages in 4-step
     • peer A sends FIN package to peer B
     • peer B sends ACK package to peer A
     • peer B sends FIN package to peer A (can be merged with above step)
     • peer A sends ACK package to peer B, then connection is closed
2. TCP vs UDP?
   • TCP supports resend loss packets, while UDP doesn’t -> TCP is used in case packet lossing is not acceptable, UDP can be used in real-time voice/call/video streaming
3. HTTP?
   • is application protocol (on L7 layer), uses TCP protocol
   • is stateless connection because each request is executed independently -> high scalability
   • HTTPS = HTTP + TLS for data encryption
   • TLS handshake
     • HTTPs handshake
       • client -> SYN -> server
       • server -> ACK/SYN -> client
       • client -> ACK -> server
4. Socket?
   • is an endpoint for sending/receiving data between processes and machines
5. DNS?
   • convert a hostname to ip address (given to each device on internet)
   • get from: browser’s cache -> OS’ cach -> DNS resolver (sends request to domain name server)
   • DNS uses UDP protocol (fast, request’s data is small)
6. Connection pool?
   • group of database connections, can be reused for new connections (opening/closing a new connection is costly)
   • cons:
     • manage pool’s configuration: pool’s size and max connections
     • resource allocation: inefficient use -> resource contention
7. TCP proxy/ reversed proxy?
   • proxy server acts as an intermediary between clients and servers. proxy hides clients on internet (server only knows requests come from proxy, not clients), and reversed proxy hides servers (client only knows response come from reversed proxy, not servers)
8. REST vs RPC vs GraphQL?
9. Event-driven architecture (EDA) vs request/response (RR)?
