hash tables

indexes & filters

• a subset of table’s attributes that is organized/sorted for efficient access to location of tuples

index

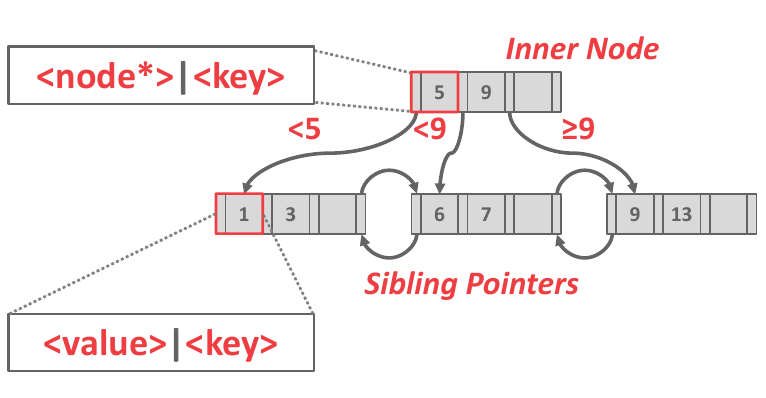

• b-tree
  • is a self-balancing tree that keeps data sorted, complexity is O(log(n))
  • is m-way search tree (m is fanout)

filter

• bloom filter
  • is a probabilistic filter using bitmap. it can return false positve results, but no false negative
• skip list
• trie
• inverted index

index concurrency control

lock/latch

• lock: high level, logical primitive, protects the contents of DB
• latch: low level, primitive for DB internal data structure
  • read latch: a worker can acquire the latch in read mode, even if another thread has already acquired
  • write latch: only 1 worker is allowed to access the item. a worker holds a write latch prevents other workers acquire a read latch

latch implementation

• use atomic instructions (CPU)
• Test-and-Set spin latch (TAS)
• Blocking OS mutex (OS built-in mutex)
• Reader-Writer latches
  • a latch can be held in either read or write mode -> manage read/write queues

hash table latching

b-tree latching

• prevent
  • threads trying to modify the contents of a node at the same time
  • 1 thread traversing the tree while another thread splits/merges nodes
• latch crabbing protocol
